Hydraulic Polyp Grabs
Professional polyp grabs for large and irregular materials
Get Your Custom Quote
Technical Specifications
| Capacity Range | 1 - 35+ m³ |
| Machine Class | 12 - 100+ tons |
| Number of Shells | 4, 5, 6, or 8 shells (custom configuration) |
| Shell Material | Hardox® 500 Tuf (wear-resistant steel) |
| Frame Material | S460 high-strength steel |
| Design Standards | NEN-EN 13001, ISO 9927, Eurocode 3 |
| Certifications | CE, EN 13155 |
| Warranty | 1 year standard warranty |
| Delivery Time | 6-10 weeks (standard), 10-14 weeks (custom) |
Why Choose the Hydraulic Orange-Peel Grab?
Engineered for superior performance with large and irregular materials in demanding industrial environments
Multi-shell Design
Available with 4, 5, 6 or 8 shells for optimal grip on large and irregular materials.
Superior Penetration
Unique shell design ensures better penetration in bulk materials compared to rehandling grabs.
Hardox 500 Tuf Shells
Extremely wear-resistant material (500 HBW) for long-term use in the harshest conditions.
Fully Custom
Each orange-peel grab is specifically designed for your material, machine and application.
FEA Structural Analysis
Every orange-peel grab is validated through Finite Element Analysis (FEA) to ensure maximum safety and performance in your specific application.
FEA Analysis Video
Safety Factor 2.0 Minimum
Double the working load limit for exceptional safety margins according to EN 13001.
Full FEA Documentation
Receive detailed FEA report with stress distributions, deformation analysis and safety calculations.
Von Mises Stress Analysis
Complete stress analysis showing maximum stress points and material utilization throughout the structure.
Multiple Load Case Validation
Analysis includes lifting, closing under load, tilting and impact scenarios for comprehensive validation.
Product Description

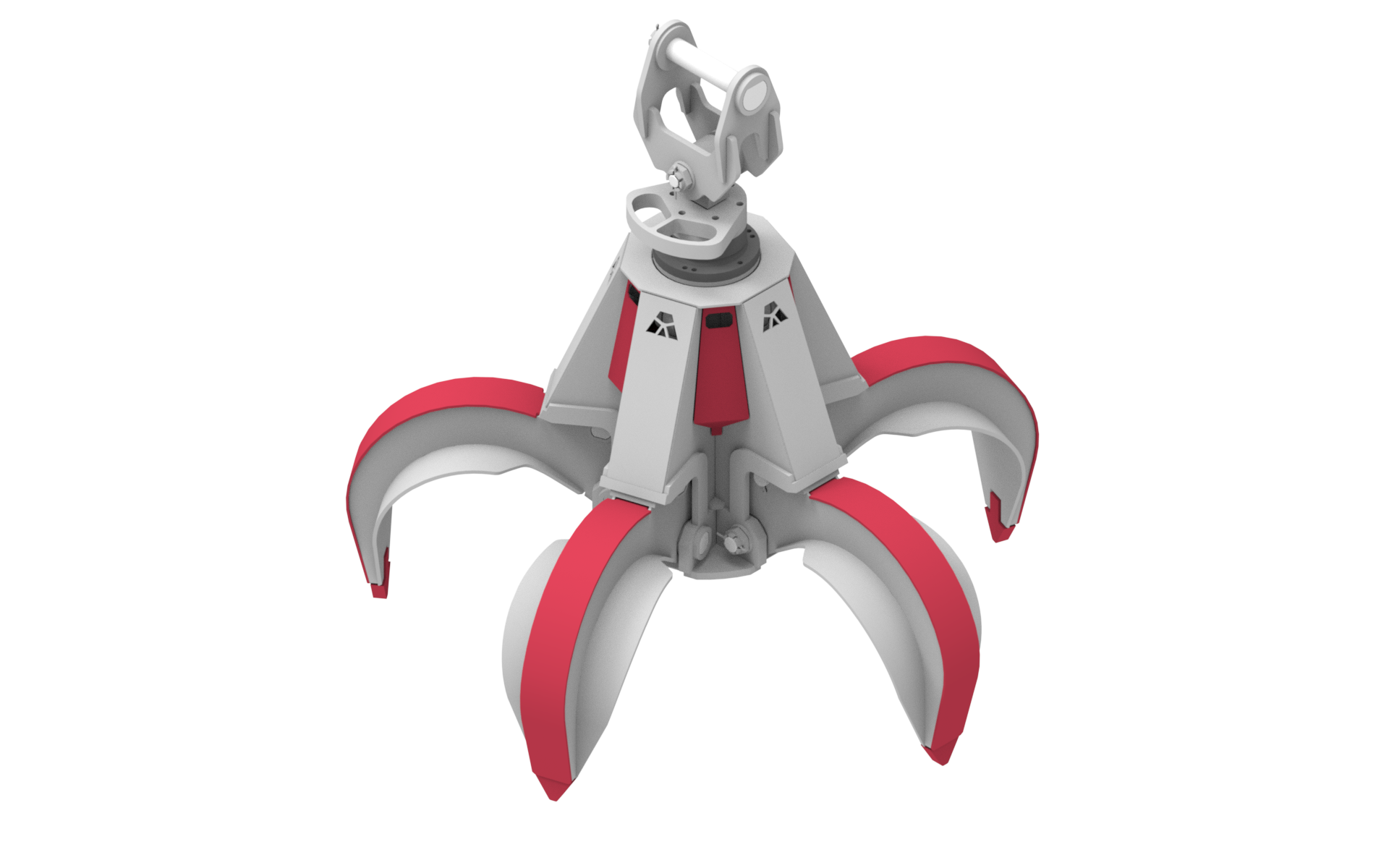

The Hydraulic Orange-Peel Grab (also known as Orange Peel Grab, Cactus Grab or Spider Grab) is designed for materials that cannot be efficiently handled with traditional rehandling grabs. This specialized grab excels when materials are too large, irregular, or when superior penetration and intrusion into the material pile is required.
The grab features a unique multi-shell design with 4, 5, 6 or 8 curved shells that close around the material like a flower. Depending on your application, the shells can be configured as open shells for maximum penetration, half-closed shells for balanced performance, or fully closed shells for fine materials. Each configuration is specifically tailored to your material type, size, and operational requirements.
Construction: The shells are manufactured from Hardox® 500 Tuf for exceptional wear resistance and toughness in the harshest conditions, while the main frame is constructed from high-strength steel S460 for optimal strength at minimum weight. This premium material combination ensures maximum durability and extended service life.
Every orange-peel grab is completely custom-designed for your specific application. Whether you're handling scrap metal, demolition waste, large stones, biomass, or other irregular materials, we engineer the perfect solution with the right number of shells, optimal weight distribution, and ideal geometry for your operation.
Application Areas
Our hydraulic polyp grabs are designed for various industries and applications.
Scrap Processing
Ideal for light, mixed and heavy scrap (HMS1/HMS2), crude iron and large metal parts.
Waste & Recycling
Perfect for household waste, industrial waste and large chunks of recyclable material.
Stones & Debris
Suitable for large stones, rock blocks, concrete debris and construction waste.
Biomass
Efficient handling of wood chips, tree trunks and other biomass materials.
Port Operations
Versatile use in ports for various bulk materials and large objects.
Demolition & Dismantling
Powerful grip on large demolition waste and irregular construction elements.
Configurations & Custom Options
Each project is unique. That's why we offer extensive customization options.
Rotation Equipment
- Mechanical swivel head (270° rotatable)
- Hydraulic Rotator (360° Steerable)
- Rotary Turntable with Hydromotor (360°)
- WitTimber rotating mechanism (plate with hoist eye)
Standard Options
- Hardox 500 Tuf shells for maximum wear resistance
- High-strength steel mother frame (S460)
- High-quality hydraulic cylinders
- Approved hoisting equipment in accordance with EN 13155
- CE Certification and Documentation
Additional Options
- Interchangeable blades
- Damped Cylinders
- Central Lubrication
- Height Compensation
- Open or closed shell grabs
- Custom RAL Colors
Custom Solutions
- Various capacities (1 - 35+ m³)
- Machine Class 12 - 100+ tons
- Custom Mounting Brackets
- Special Versions (Seawater, Extreme Temperatures)
- Custom-made solutions
Frequently Asked Questions
For which applications is a hydraulic orange-peel grab most suitable?
Polyp grabs are ideal for large, irregular materials such as scrap metal, demolition waste, large stones, tree trunks, and bulky waste. They are particularly suitable when materials are too large for rehandling grabs or when better penetration is needed.
How many tines/shells does an orange-peel grab have?
Polyp grabs can be equipped with 4, 5, 6 or 8 shells depending on the application. The number of shells is determined by the material type, size, and specific requirements of your operation.
What is the difference between an orange-peel grab and a rehandling grab?
A polyp grab has multiple curved shells that close around the material like a flower, while a rehandling grab has two large shells like a clamshell. Polyp grabs offer better penetration and grip for large, irregular materials, while rehandling grabs are better for bulk materials and smaller items.
Can an orange-peel grab handle heavy scrap such as steel plates?
Yes, our polyp grabs are specifically designed to handle heavy scrap including HMS1/HMS2, steel plates, and large metal parts. The shells are made of Hardox 500 Tuf for maximum strength and wear resistance.
Can I combine a rotator with an orange-peel grab?
Absolutely! We offer various rotation options including mechanical swivel heads (270°), hydraulic rotators (360°), and slewing rings with hydromotor. A rotator significantly improves efficiency and positioning accuracy.
