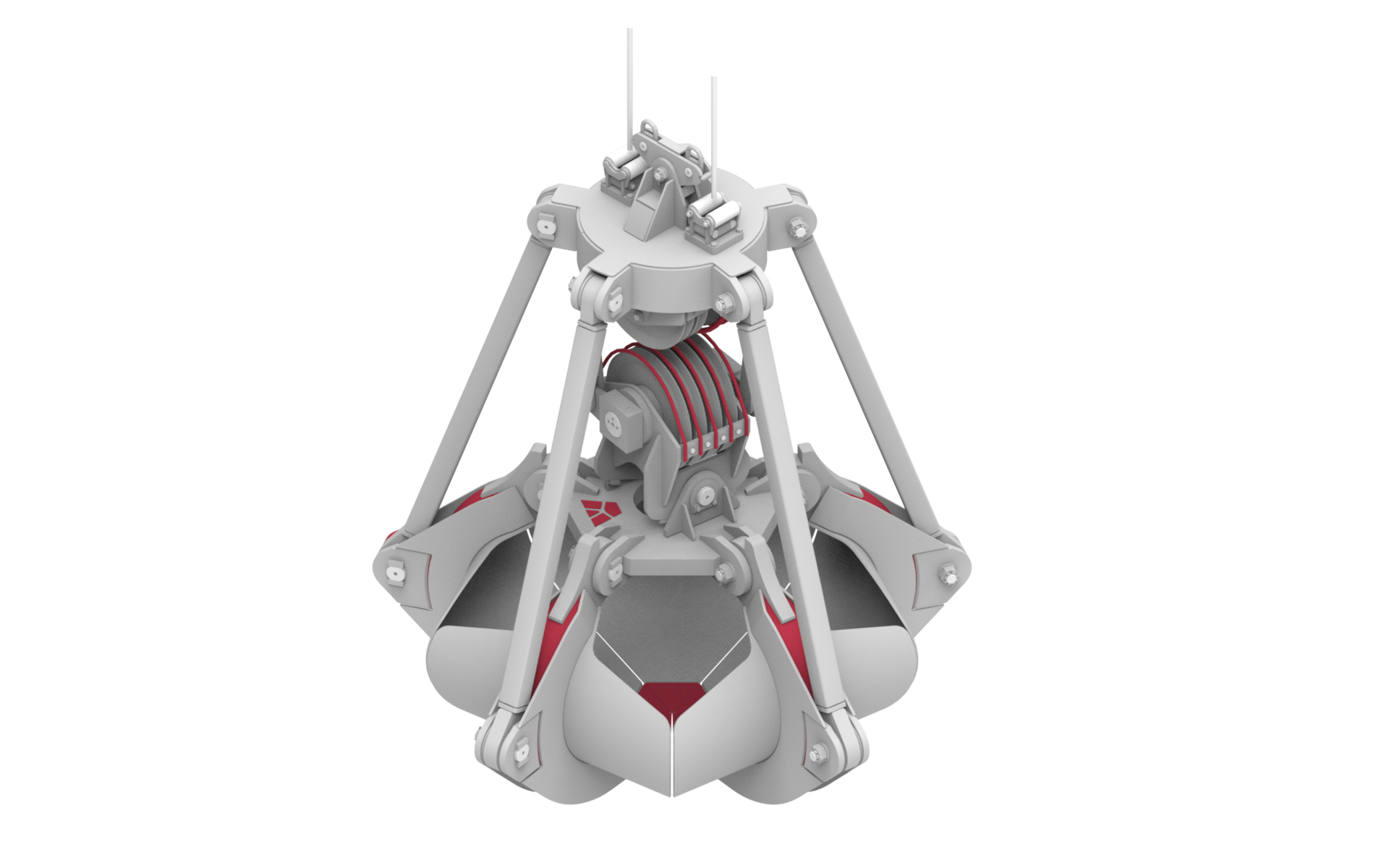

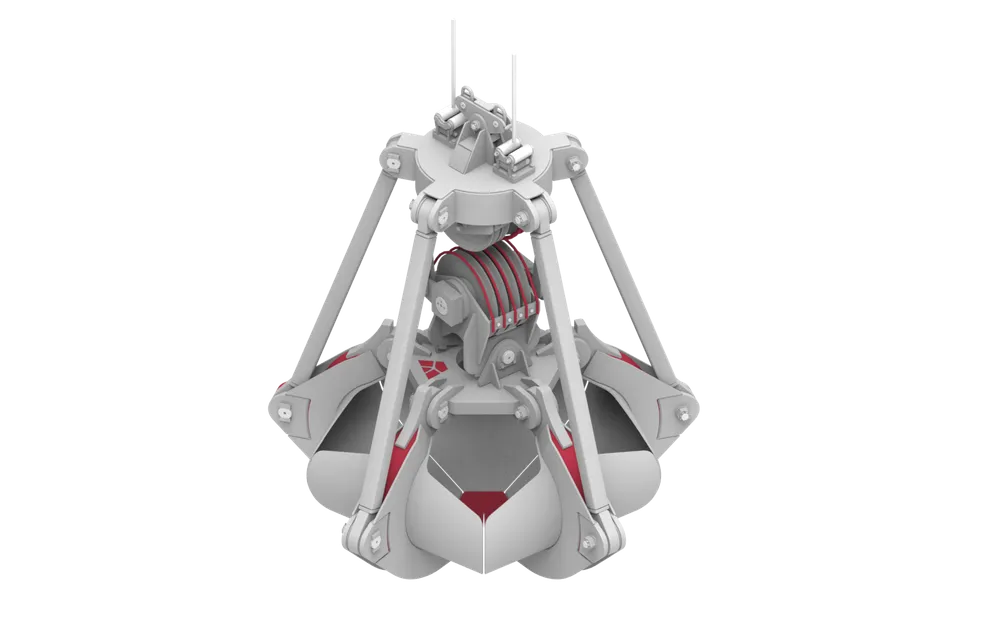

Mechanical Orange Peel Grab
Reliable mechanical orange peel grabs in 2-rope and 4-rope configurations for scrap, rocks, waste and more
Get Your Custom Quote
Why Choose the Mechanical Orange Peel Grab?
Simple, reliable, and cost-effective handling of scrap, rocks, waste, and irregular materials
Two Rope & Four Rope
Available in both two-rope and four-rope configurations, perfectly matched to your crane type and application.
Multi-shell Design
Available with 3, 4, 5, 6, 7, or 8 claws for optimal grip on various materials and applications.
Reliable Operation
Simple mechanical operation without hydraulics ensures maximum reliability and minimal maintenance costs.
Abrasion-Resistant Materials
Made from high-quality, wear-resistant steel grades for long-lasting performance under heavy conditions.
Interchangeable Teeth
Optional with interchangeable teeth for easy maintenance and lower service costs.
Custom Built
Each grab is specifically designed for your material, crane capacity, and specific application.
Product Description
The Mechanical Orange Peel Grab is available in various configurations for handling scrap, rocks, household waste, wood chips, and other large or irregular materials. These robust grabs are available in both two-rope and four-rope versions and are also suitable for dredging operations.
Flexible Shell Configuration: The grab's shells can be configured with 3, 4, 5, 6, 7, or 8 shells, depending on the materials to be handled. They can be open, partially closed, or fully closed, fully tailored to your specific application and material.
Tooth Points: The grabs can be equipped with integrated tooth points for maximum durability or with replaceable tooth points for easy maintenance and lower service costs.
Construction: The grabs are manufactured from high-quality wear-resistant steel grades for long-lasting performance under heavy conditions. Each component is designed for maximum reliability and minimal maintenance.
Two-Rope vs Four-Rope: The two-rope configuration is ideal for standard crane applications, offering a simple and reliable operation. The four-rope version is suitable for higher capacities and heavier loads, providing enhanced stability and precision.
Applications
Our mechanical orange peel grabs are designed for various industries and applications
Scrap Processing
Ideal for light, mixed, and heavy scrap, rough iron, and large metal components in recycling facilities.
Waste & Household Waste
Ideal for household waste, industrial waste, and large pieces of recyclable material.
Rocks & Stones
Suitable for large rocks, boulders, cobblestones, and other irregular materials.
Timber Grabs & Biomass
Efficient handling of wood chips, tree trunks, and other biomass materials.
Dredging Operations
Special versions available for dredging and earthworks operations.
Crane Operations
Versatile use in ports for various bulk materials and large objects with wire cranes.
FEA Structural Analysis
Every mechanical orange-peel grab is validated through Finite Element Analysis (FEA) to ensure maximum safety and performance in your specific application.
FEA Analysis Video
Safety Factor 2.0 Minimum
Double the working load limit for exceptional safety margins according to EN 13001.
Full FEA Documentation
Receive detailed FEA report with stress distributions, deformation analysis and safety calculations.
Von Mises Stress Analysis
Complete stress analysis showing maximum stress points and material utilization throughout the structure.
Multiple Load Case Validation
Analysis includes lifting, closing under load, tilting and impact scenarios for comprehensive validation.
Models & Custom Options
Every project is unique. That's why we offer extensive customization options.
Two-Rope Configuration
- For cranes with a two-rope operating system
- Simple mechanical operation
- Reliable and low-maintenance
- Suitable for various materials
Four Rope Configuration
- For cranes with a four-rope operating system
- Larger capacities possible
- Stable and precise operation
- Ideal for heavier applications
Grab Configurations
- 3, 4, 5, 6, 7 or 8 shells
- Open chutes for bulk materials
- Partially closed shells for mixed materials
- Fully enclosed buckets for fine materials
- Integrated teeth
- Interchangeable teeth
Custom Solutions
- High-quality wear-resistant steel grades
- Adapted to your crane capacity
- Special for dredging operations
- Every desired configuration possible
- CE Certification and Documentation
Frequently Asked Questions
What makes a mechanical orange peel grab different from a hydraulic version?
Mechanical orange peel grabs operate with simple wire rope mechanisms without hydraulic cylinders, making them more reliable with lower maintenance costs. They are ideal for wire-operated cranes in ports and recycling facilities.
Does a mechanical orange peel grab operate on two ropes or four ropes?
Both versions are available. The two-rope configuration is ideal for standard crane applications, while the four-rope version is suitable for higher capacities and heavier loads with enhanced stability.
For which types of scrap is a mechanical orange peel grab suitable?
Mechanical orange peel grabs are ideal for light, mixed, and heavy scrap, rough iron, large metal components, household waste, rocks, wood chips, and other irregular materials. The configuration can be customized for your specific material type.
How long does a mechanical orange peel grab last with intensive use?
With high-quality wear-resistant steel construction and proper maintenance, mechanical orange peel grabs can last many years under intensive use. Optional interchangeable teeth further extend service life and reduce long-term costs.
What are the capacities for mechanical orange peel grabs?
Mechanical orange peel grabs are available in various capacities tailored to your crane type and material handling requirements. The optimal capacity depends on the number of shells (3-8), material density, and your specific application. We custom-build each grab to match your crane's maximum hoisting capacity.
